Application
LMZ-0.66 Type current transformer is mainly used for indoor, for rated voltage up to and including 0.66kV, rated frequency 50Hz AC circuit for Current measurement or electrical energy measurement. The product is an unsaturated resin casting method, and the fixed installation method is adopted. Standard: lEC61869

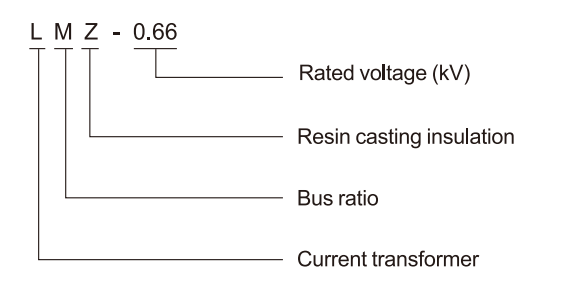

Code and Implication
Working Environment
1. Installation sites: Indoor2. Ambient temperature:-5~40’C
3. Ambient humidity: 80%
4. Altitude: 1000m
5 . Atmospheric conditions: no serious impurity inthe atmosphere.

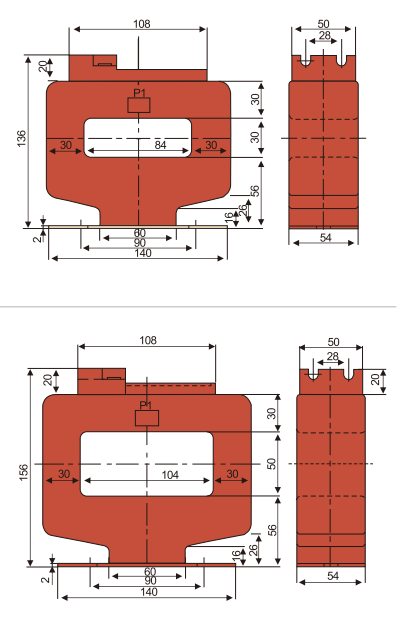

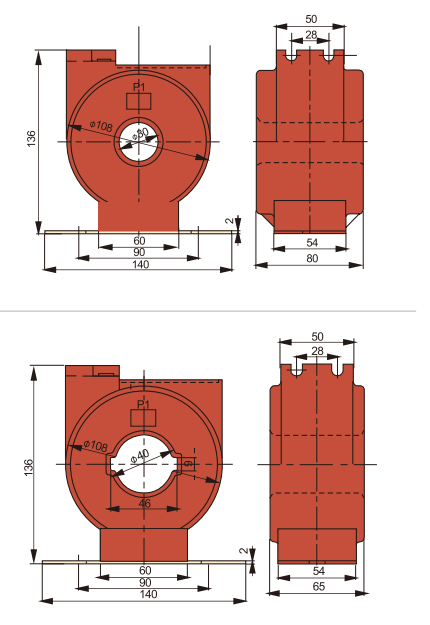

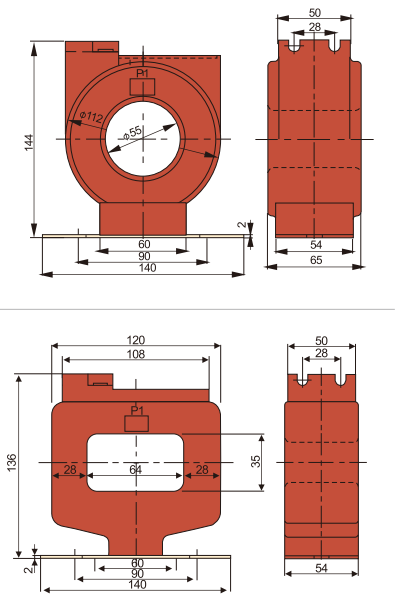

Technical Parameters and Installation Size
Ordering Instructions
When the customer orders, they must provide the following information:
1. Product model and install the bus width;
2. current ratio;
3. rated output, and the corresponding accurate level; For example: solid order LMZ-0.66, Bus width is 30mm, rated output current ratio 150/5 A, and 10 VAAccurate magnitude 0.2S magnitude of transformer. The order code for LMZ-0.66 150/5A 10 VA is a magnitude of 0.2S.4. If you have special requirements, a customized consultation with the manufacturer.
