What Is A Square Power Capacitor？

A Square Power Capacitor is a mainstream low-voltage enclosed reactive power compensation capacitor with a rigid square metal housing. Different from cylindrical capacitors, this square-type power capacitor adopts a flat square structural design, taking on a regular cuboid shape that perfectly fits the internal spatial layout of standard low-voltage distribution cabinets. It takes high-quality metallized polypropylene film as the internal dielectric material, matched with environmentally friendly insulating resin for full sealing and filling.

Manufactured with mature winding and welding technology, the Square Power Capacitor is integrated with safety protection components such as pressure relief valves and built-in discharge resistors.

Core Functions of a Square Power Capacitor

Core Function	Universal Data Range	Application Advantage
Power Factor Correction	Optimize power factor from 0.68 to 0.97+	Avoid reactive power fine and reduce enterprise electricity cost
Grid Line Loss Reduction	Cut down line active loss by 9%-16%	Minimize heat loss of power transmission lines
Voltage Fluctuation Suppression	Control voltage deviation within ±4%	Stabilize terminal voltage for inductive electrical equipment
Low-order Harmonic Purification	Suppress 3rd/5th harmonic below 4.5%	Reduce harmonic damage to cables and electrical components
Cabinet Space Utilization	Improve cabinet space utilization by 25%	Suitable for dense assembly of multiple capacitors

Types of Square Power Capacitors We Offer

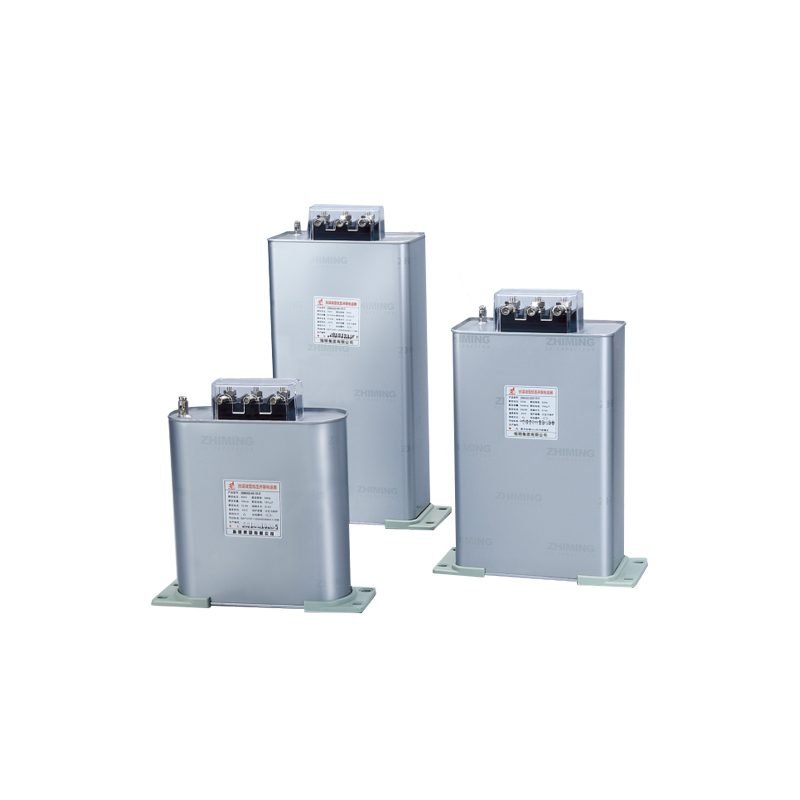

Low-Voltage Three-phase Factor Power Capacitor (Anti-harmonic type)

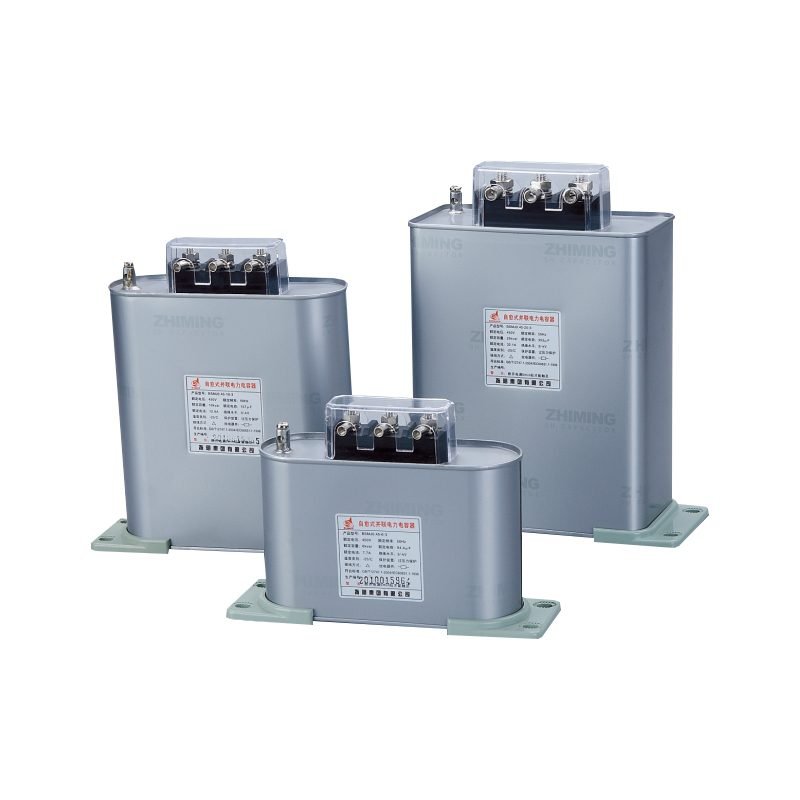

Low-Voltage Three-phase Factor Power Capacitor (Self-healing type)

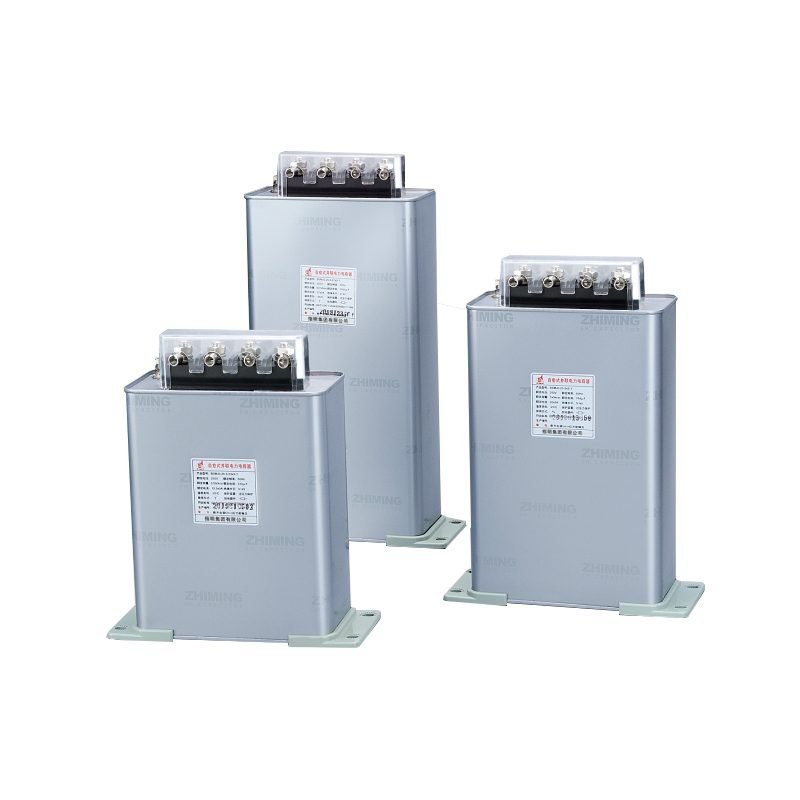

Split Phase Low-Voltage Shunt Power Capacitor

Technical Specifications Table

This table helps engineers and procurement teams quickly match the right square power capacitor to their system requirements.

Technical Item	Universal Specification Data
Rated Working Voltage	400V, 450V, 500V, 525V
Rated Frequency	50Hz / 60Hz (Dual Frequency)
Single Unit Capacity	10kvar - 60kvar (Customizable)
Capacitance Tolerance	-3% ~ +3%
Loss Tangent (tanδ)	≤0.0009 (25℃ Constant Temperature)
Internal Configuration	Built-in discharge resistor & pressure relief valve
Shell Material	Galvanized Steel / Aluminum Alloy Square Shell
Working Altitude	≤1200m
Operating Temperature	-25℃ ~ +55℃
Design Service Life	12 Years Standard Service Lifespan

Industry Applications

Where Our Square Power Capacitor Delivers Proven Results

A high-performance Square Power Capacitor cannot adopt generalized fixed design, as low-voltage power distribution cabinets have different assembly density and load operation modes. Our square-shaped power capacitor is professionally engineered for standardized cabinet installation scenarios. It effectively helps industrial users cut down extra reactive energy penalties, maintain stable grid voltage amid frequent load changes, and minimize low-order harmonic distortion in three-phase power loops.

Industrial Motor & Induction Loads

Problem: Low power factor (0.65–0.75) due to large motors, transformers, and welding equipment.
Solution: Install low voltage power capacitor banks at motor terminals or main distribution panel.
Result: PF raised to ≥0.96; energy loss cut by 12–18%; payback period < 8 months.

Commercial HVAC & Lighting Systems

Problem: High harmonic content and monthly kVAR charges from chillers, elevators, and LED drivers.
Solution: Detuned power factor correction capacitor with 7% or 14% reactor.
Result: Compliance with utility PF penalty limits; 10–15% lower electricity bills.

Renewable Energy (Solar & Wind Farms)

Problem: Fluctuating reactive power causing grid instability and inverter overheating.
Solution: Automated high voltage power capacitor banks with step controllers.
Result: Smooth voltage profile, increased inverter lifespan, and improved feed-in tariff eligibility.

Utility Substations & Distribution Networks

Problem: Seasonal PF drop due to light load conditions and long transmission lines.
Solution: Switched power capacitor racks with vacuum contactors.
Result: Reduced line losses, freed up transformer capacity, and delayed infrastructure upgrades.

Why Choose ZHIMING's Square Power Capacitor?

Standardized Square Structural Layout

ZHIMING Square Power Capacitor adopts regular square shell with unified industrial size. It fits perfectly with international standard distribution cabinets, supports dense arrangement and combined installation, and makes internal cabinet wiring neater and more orderly.

Premium Self-healing Dielectric Material

This square capacitor uses high-toughness metallized polypropylene film. With excellent self-healing performance, it can repair tiny breakdown points caused by instantaneous voltage surge, avoiding permanent failure and extending service life.

Multi-layer Safety Protection System

Equipped with mechanical pressure relief valve, overcurrent protection and built-in rapid discharge resistor. When abnormal pressure or overvoltage occurs inside the device, it will automatically cut off the circuit to prevent bulging and leakage risks.

Excellent Sealing & Insulation Performance

Adopt integral sealing process with environmentally friendly resin filling. The square shell has strong compression resistance, effectively isolating external dust, moisture and corrosive gas, adapting to complex indoor industrial environments.

Stable Compensation & Low Energy Consumption

Optimized internal winding structure reduces dielectric loss. The capacitor maintains stable reactive power output for a long time without performance attenuation, effectively reducing no-load loss of the power grid.

Cost-effective & Easy Maintenance

The rugged square shell structure is resistant to collision and deformation during transportation and installation. It adopts maintenance-free design, requiring no daily manual maintenance to save later operating investment.

Got Questions?
We've Got Answers

A leading power capacitor manufacturer with over 25 years of experience is here to answer all your inquiries—covering any product-related issues, business questions, or service-related concerns.

Still Have Questions? We’re Here to Help

Didn’t find what you were looking for?

8093446000

1. What are the main usage scenarios of ZHIMING Square Power Capacitor?

It is widely applied in 400V low-voltage three-phase power systems, suitable for industrial production workshops, shopping malls, office buildings, pumping stations and automated production lines. It is mainly used for centralized reactive power compensation of distribution cabinets.

2.What are the advantages of square capacitor compared with cylindrical capacitor?

The square structure features neat edges and fixed size, which is more suitable for dense assembly in standard cabinets. It has higher space utilization rate, easier stacking and installation, and is more friendly for large-scale combined compensation projects.

3. Can this Square Power Capacitor work in dusty industrial workshops?

Yes. The fully sealed integrated structure has excellent dustproof and moistureproof capability. The solid metal shell prevents external impurities from entering the interior, ensuring stable operation in dusty and dry industrial environments.

4. Is parallel installation allowed for multiple square capacitors?

Definitely allowed. The standardized size and uniform heat dissipation design support parallel combination installation. Users can freely match capacitors with different capacities according to actual power compensation requirements.

5. What after-sales guarantee is provided for this product?

We provide 3-year quality warranty and lifelong free technical consultation. For bulk order customers, we support customized capacity and voltage parameters, and provide professional power grid compensation scheme matching service.
