As a leading global manufacturer of capacitors and power quality solutions, ZHIMING Group understands the critical importance of safety and reliability in reactive power compensation systems.
Our Capacitor Contactors are engineered specifically for the demanding application of switching capacitors. They are more than just circuit switches; they are the guardians of your entire electrical investment. Leveraging deep industry expertise and cutting-edge technology, ZHIMING provides a comprehensive range of high-performance Capacitor Duty Contactors, ensuring worry-free, efficient, and long-lasting operation of your power factor correction systems. We are committed to delivering products that embody our relentless pursuit of quality and user safety.

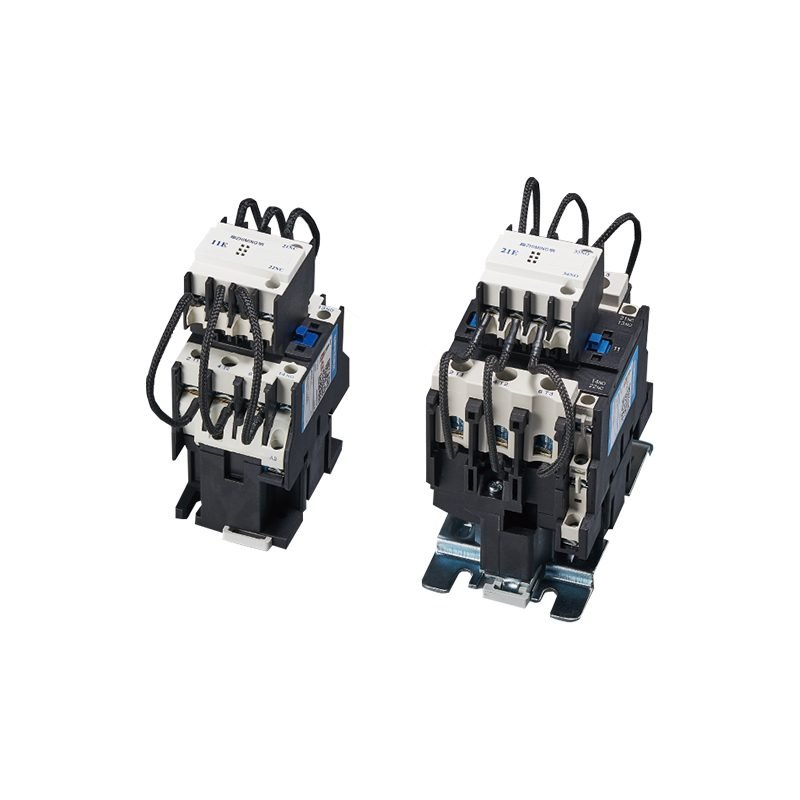

What is a Capacitor Contactor?
In simple terms, a Capacitor Switching Contactor is an electrical switching device designed specifically for making and breaking capacitor circuits. It is not a standard contactor but is specially reinforced to address the core challenge of high inrush current generated when a capacitor is connected to the power grid.
The Core Value of Using a ZHIMING Capacitor Contactor
1. Ultimate Safety Assurance
Standard contactors, when switching capacitors, are highly susceptible to contact welding, burnout, and even safety hazards due to the immense inrush current. ZHIMING Capacitor Switching Contactors, through specialized design and materials, effectively suppress inrush current, eliminating such risks at the source and safeguarding both equipment and personnel.
2. Significant Service Life Extension
By mitigating arc erosion and contact sticking, the electrical and mechanical lifespan of ZHIMING contactors far exceeds that of standard models. This not only reduces spare part replacement costs but also significantly minimizes system downtime, enhancing overall operational efficiency.
3. Improved System Stability
Smooth, shock-free switching operations prevent severe voltage fluctuations on the grid, protecting connected sensitive electronic equipment and ensuring the continuous stability of production processes and power quality.
4. Optimized Energy Management
Acting as the “precision actuator” in a power factor correction panel, it ensures capacitor banks can be switched in quickly and reliably when most needed, thereby effectively improving the power factor, avoiding utility penalties, and saving energy costs.
Application Scenarios
ZHIMING Capacitor Contactors are the ideal choice for numerous applications requiring power factor correction and reactive power compensation. Typical application fields include:
1. Industrial Manufacturing
Widely used in workshops with high concentrations of inductive loads, such as those with injection molding machines, CNC machine tools, welding machines, and cranes, ensuring a stable power supply for production lines.
2. New Energy Sector
Used at the output of photovoltaic inverters and wind turbine converters to compensate for system reactive power and meet grid connection requirements.
3. Building Automation
Employed in power distribution systems for central air conditioning, pumps, elevators, and fans to achieve intelligent energy savings in buildings.
4. Power & Infrastructure
Applied in reactive power compensation panels within substations and distribution rooms, serving as a critical component in smart grids.
5. Other Fields
Such as rail transportation, data centers, and medical facilities—places with extremely high demands for power quality.
Advantages & Technical Highlights of Capacitor Contactors
ZHIMING Group is committed to creating value for customers through technological innovation. Our Capacitor Duty Contactors offer the following distinct advantages and technical highlights:
1. Advanced Inrush Current Suppression Technology
Utilizing pre-charge impedance or advanced phase synchronization control technology, they can effectively limit the closing inrush current to below 20 times the rated current, far superior to the 40-100 times surge that standard contactors may experience.
2. Superior Contact System Design
Contacts are made of premium materials like silver alloy, resistant to welding and arc erosion.
A unique magnetic blowout structure quickly breaks and extinguishes arcs, reducing contact wear and ensuring long-term stability of contact resistance.
3. Robust Electrical & Mechanical Performance
High breaking capacity for safely interrupting fault currents.
Coils with a wide voltage design, adaptable to more complex grid environments.
Rugged mechanical structure withstands frequent operation (millions of cycles), ensuring a long service life.
4. Stringent Quality & Safety Standards
All ZHIMING capacitor contactors comply with international standards such as CE and RoHS.
Each unit undergoes rigorous pre-delivery testing for electrical performance, mechanical operation, and environmental adaptability, guaranteeing reliability.
FAQ
Q1: Why can’t a standard contactor be used instead of a capacitor contactor?
A1: It is absolutely not recommended. Capacitors retain charge after being disconnected from the power supply. Re-energizing them causes a voltage superposition with the grid, generating an inrush current dozens of times higher than the rated current. Standard contactors cannot withstand this repeated current shock and will fail quickly. Capacitor Duty Contactors are specifically designed to solve this problem.
Q2: How do I select the right capacity of capacitor contactor for my compensation panel?
A2: The selection is primarily based on the rated current of the capacitor bank it controls and the compensation step. We recommend that the contactor’s rated current be at least 1.5 times the capacitor bank’s rated current to provide a sufficient safety margin. ZHIMING offers a complete series from 10A to several hundred Amps, and our technical team can provide free selection support.
Q3: Are ZHIMING capacitor switching contactors suitable for both three-phase and single-phase applications?
A3: Yes, ZHIMING provides a comprehensive range of both three-phase and single-phase Capacitor Contactor products to meet different wiring methods and compensation scheme requirements.
Q4: What is the service life of your capacitor contactors in frequent switching applications?
A4: This is one of our key strengths. Thanks to the special contact material and arc extinguishing system, the electrical lifespan of ZHIMING Capacitor Switching Contactors can reach several hundred thousand operations under standard load conditions, with a mechanical lifespan in the millions, fully meeting the demands of automated systems requiring frequent switching.
