What Is Inverter Output Reactor？

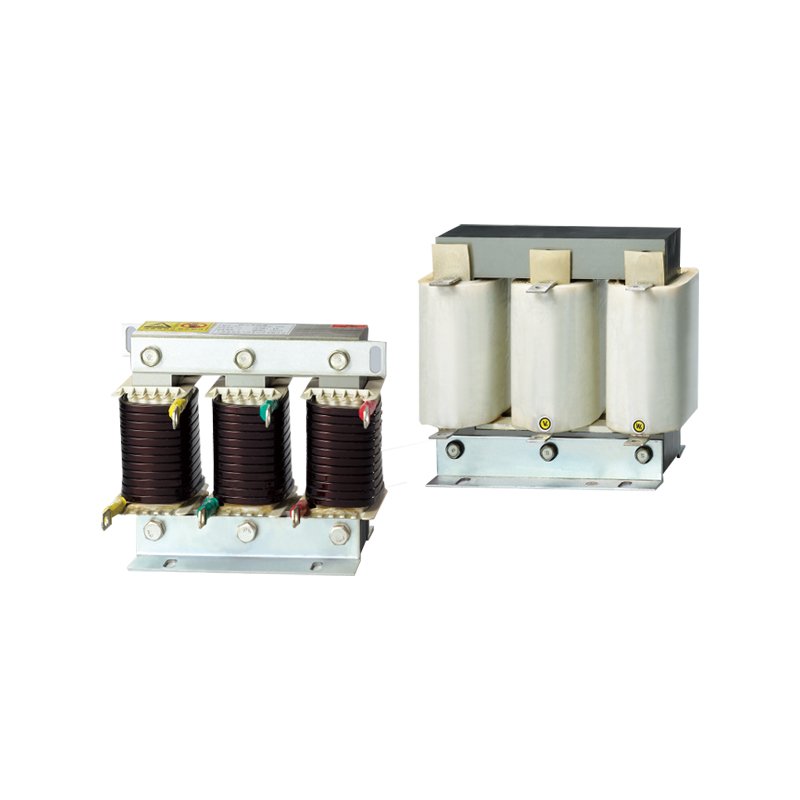

The ZHIMING OCL Series Inverter Output Reactor is an electrical component installed between a variable frequency drive (VFD) and the motor it controls. Built with high-quality imported silicon steel laminations and high-purity copper windings, this Inverter Output Reactor suppresses the steep voltage rise rate (dV/dt) of PWM output waveforms and limits capacitive charging currents in long motor cables. By smoothing the inverter output waveform, it improves power quality, boosts the system power factor, and protects motor windings from insulation stress. Compact, quiet, and thermally efficient, the OCL Series complies with IEC 289:1987 and is suitable for a wide range of industrial drive applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Rated Operating Voltage | 380V / 50Hz |
| Voltage Drop | 1%–2% |
| Electric Strength | Iron core–winding: 3000VAC / 50Hz / 10mA / 60s, no arcing, no breakdown |
| Insulation Resistance | Iron core–winding: 1000VDC, ≥100MΩ |
| Noise Level | <35dB (measured 1m horizontally from reactor) |
| Temperature Rise | <60K |
Main Technical Data of the Inverter Output Reactor
Inverter Output Reactor
Note: The below-mentioned data is the reference for typical models; we can design and produce according to the special requirements of the user. We reserve the right to change the technical data.
| Model | Power Adapter (kW) | Rated Current (A) | Voltage Drop | Insulation Grade | Dimensions (mm) | Mounting (mm) | Hole |
|---|---|---|---|---|---|---|---|
| OCL-8 | 0.75 (1.5) | 8 | 2%, 1% | F, H | 140×100×120 | 75×55 | 6 |
| OCL-10 | 2.2 | 10 | 2%, 1% | F, H | 140×100×120 | 75×55 | 6 |
| OCL-10 | 2.5 (4.0) | 10 | 2%, 1% | F, H | 140×100×120 | 75×55 | 6 |
| OCL-15 | 5.5 | 15 | 2%, 1% | F, H | 140×100×120 | 75×55 | 6 |
| OCL-20 | 7.5 | 20 | 2%, 1% | F, H | 140×100×120 | 75×55 | 6 |
| OCL-30 | 11 | 30 | 2%, 1% | F, H | 170×130×145 | 80×65 | 6 |
| OCL-40 | 15 | 40 | 2%, 1% | F, H | 170×130×145 | 80×65 | 6 |
| OCL-50 | 18 | 50 | 2%, 1% | F, H | 170×130×145 | 80×65 | 10 |
| OCL-60 | 22 | 60 | 2%, 1% | F, H | 210×130×170 | 110×65 | 10 |
| OCL-80 | 30 | 80 | 2%, 1% | F, H | 210×130×170 | 110×65 | 10 |
| OCL-110 | 37 | 110 | 2%, 1% | F, H | 210×130×170 | 110×65 | 10 |
| OCL-120 | 45 | 120 | 2%, 1% | F, H | 210×150×170 | 110×85 | 10 |
| OCL-150 | 55 | 150 | 2%, 1% | F, H | 210×160×215 | 110×95 | 10 |
| OCL-200 | 75 | 200 | 2%, 1% | F, H | 210×160×215 | 110×95 | 10 |
| OCL-250 | 90 | 250 | 2%, 1% | F, H | 210×160×215 | 110×95 | 10 |
| OCL-280 | 110 | 280 | 2%, 1% | F, H | 250×180×260 | 133×110 | 10 |
| OCL-300 | 132 | 300 | 2%, 1% | F, H | 250×180×260 | 133×110 | 10 |
| OCL-400 | 160 | 400 | 2%, 1% | F, H | 280×190×260 | 170×115 | 10 |
| OCL-450 | 187 | 450 | 2%, 1% | F, H | 280×190×260 | 170×115 | 10 |
| OCL-500 | 200 | 500 | 2%, 1% | F, H | 280×190×260 | 170×115 | 10 |
| OCL-600 | 250 | 600 | 2%, 1% | F, H | 280×210×260 | 170×135 | 12 |
| OCL-800 | 315 | 800 | 2%, 1% | F, H | 320×230×290 | 200×120 | 12 |
| OCL-1000 | 400 | 1000 | 2%, 1% | F, H | 320×260×290 | 200×130 | 12 |
| OCL-1100 | 450 | 1100 | 2%, 1% | F, H | 350×260×320 | 200×130 | 12 |
Why Choose ZHIMING's Inverter Output Reactor?
Premium Core & Winding Materials
The OCL Series Inverter Output Reactor uses high-grade grain-oriented silicon steel laminations and high-purity oxygen-free copper conductors, achieving excellent magnetic performance with minimal core losses. This material selection directly translates to lower heat generation and higher energy efficiency across the entire operating range.
Low-Noise, Low-Temperature-Rise Operation
Engineered with core clamping techniques, precision winding tensioning, and vacuum pressure impregnation (VPI), this Inverter Output Reactor operates at less than 35dB — exceptionally quiet for industrial environments. Temperature rise stays under 60K thanks to an optimized thermal design that maximizes heat dissipation through core geometry and ventilation.
Superior Insulation & Dielectric Strength
Class F/H insulation materials combined with VPI processing provide outstanding dielectric endurance. The Inverter Output Reactor withstands 3000VAC between core and winding with insulation resistance exceeding 100MΩ at 1000VDC, ensuring long-term reliability even under the high dV/dt stress of modern IGBT-based drives.
Flexible Sizing & Compact Footprint
With 24 standard models spanning 0.75kW to 450kW motor power, the OCL Series covers virtually all common industrial drive applications. Each unit is designed for space-efficient panel mounting with standardized fixing points, anti-corrosion finishes, and accessible copper terminals for secure low-resistance connections.
FAQ
What does an Inverter Output Reactor do in a VFD system?
The OCL Series Inverter Output Reactor is installed between the VFD and the motor to limit the voltage rise rate (dV/dt) of PWM output pulses and reduce capacitive charging currents in long motor cables. This protects motor insulation from premature aging, reduces electromagnetic interference, and improves overall power quality.
What motor power range does the OCL Series cover?
The OCL Series spans 24 models covering motor adapters from 0.75kW to 450kW, with rated currents from 8A to 1100A. Custom designs beyond this range can be produced upon request.
What is the noise level of this Inverter Output Reactor?
The OCL Series is designed for low acoustic noise emission, measuring less than 35dB at a distance of 1 meter horizontally from the reactor. This is achieved through core clamping, precision winding tensioning, and full vacuum pressure impregnation.
What insulation and voltage withstand ratings does it have?
The Inverter Output Reactor features Class F or H insulation and passes a 3000VAC / 50Hz / 60s dielectric test between core and winding without arcing or breakdown. Insulation resistance exceeds 100MΩ when tested at 1000VDC.
Can I order a custom Inverter Output Reactor with non-standard specifications?
Yes. The data table represents typical models, but ZHIMING can design and produce OCL reactors to meet special requirements including non-standard current ratings, voltage ratings, mounting dimensions, and environmental conditions. Contact the manufacturer with your specifications for a customized solution.
