What Is Inverter Incoming Reactor？

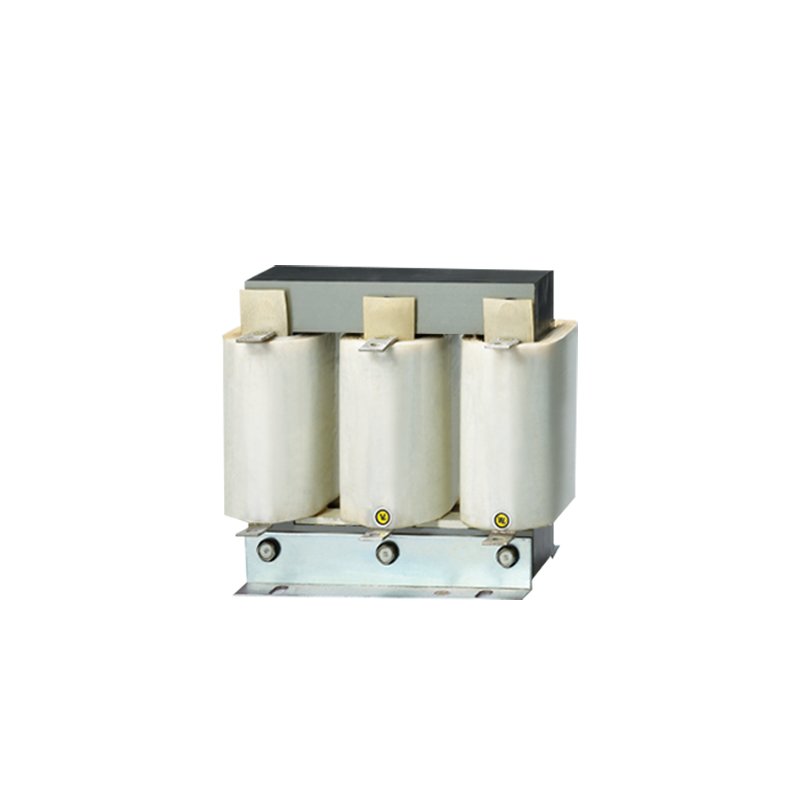

The ZHIMING ACL Series Inverter Incoming Reactor is a line-side protection component installed at the input of variable frequency drives (VFDs), DC speed regulators, and other power conversion equipment. Built with high-quality imported silicon steel laminations and high-purity copper windings, this Inverter Incoming Reactor suppresses harmonic currents, limits inrush current during drive startup, and improves the input power factor. By reducing line-side harmonics and protecting upstream equipment from drive-generated electrical noise, the ACL Series enhances overall system reliability and power quality. Compact, quiet, and thermally efficient, it complies with IEC 289:1987 and is suitable for a wide range of industrial drive applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Rated Operating Voltage | 380V AC / 50Hz |
| Voltage Drop | 2%–4% (of rated voltage) |
| Dielectric Strength | Core-to-winding: 2500V AC / 50Hz / 10mA / 60s, no flashover, no breakdown |
| Insulation Resistance | Core-to-winding: ≥100MΩ (measured at 500V DC) |
| Maximum Noise Level | <35dB(A) (measured 1m horizontally from reactor surface) |
| Maximum Temperature Rise | ≤60K |
Main Technical Data of the Inverter Incoming Reactor
Note: The below-mentioned data is the reference of typical models; we can design and produce according to the special requirements by User, we reserve the right to change the technical data.

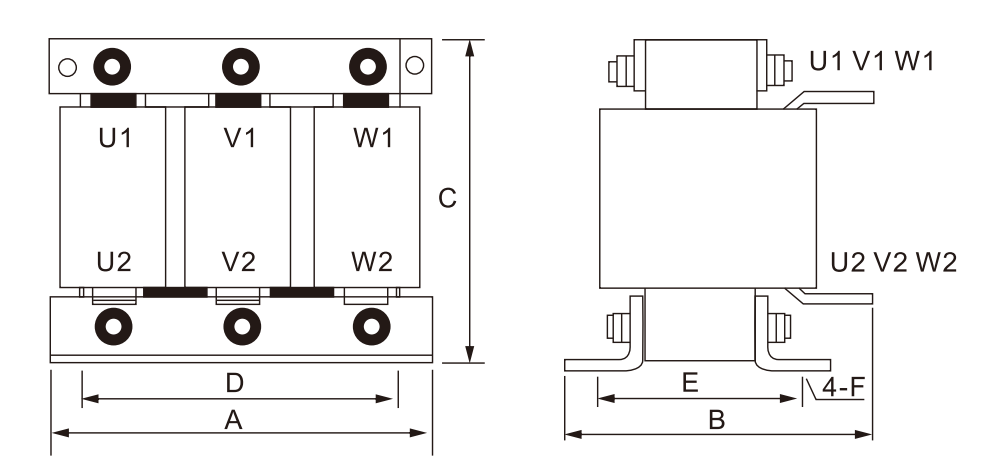

| Model | Power Adapter (kW) | Rated Current (A) | Voltage Drop | Insulation Grade | Dimensions (mm) | Mounting (mm) | Hole |
|---|---|---|---|---|---|---|---|
| ACL-8 | 0.75 (1.5) | 8 | 4%, 2% | F, H | 140×100×120 | 75×55 | 6 |
| ACL-10 | 2.2 | 10 | 4%, 2% | F, H | 140×100×120 | 75×55 | 6 |
| ACL-10 | 2.5 (4.0) | 10 | 4%, 2% | F, H | 140×100×120 | 75×55 | 6 |
| ACL-15 | 5.5 | 15 | 4%, 2% | F, H | 140×100×120 | 75×55 | 6 |
| ACL-20 | 7.5 | 20 | 4%, 2% | F, H | 140×100×120 | 75×55 | 6 |
| ACL-30 | 11 | 30 | 4%, 2% | F, H | 170×130×145 | 80×65 | 6 |
| ACL-40 | 15 | 40 | 4%, 2% | F, H | 170×130×145 | 80×65 | 6 |
| ACL-50 | 18 | 50 | 4%, 2% | F, H | 170×130×145 | 80×65 | 10 |
| ACL-60 | 22 | 60 | 4%, 2% | F, H | 210×130×170 | 110×65 | 10 |
| ACL-80 | 30 | 80 | 4%, 2% | F, H | 210×130×170 | 110×65 | 10 |
| ACL-110 | 37 | 110 | 4%, 2% | F, H | 210×130×170 | 110×65 | 10 |
| ACL-120 | 45 | 120 | 4%, 2% | F, H | 210×150×170 | 110×85 | 10 |
| ACL-150 | 55 | 150 | 4%, 2% | F, H | 210×160×215 | 110×95 | 10 |
| ACL-200 | 75 | 200 | 4%, 2% | F, H | 210×160×215 | 110×95 | 10 |
| ACL-250 | 90 | 250 | 4%, 2% | F, H | 210×160×215 | 110×95 | 10 |
| ACL-280 | 110 | 280 | 4%, 2% | F, H | 250×180×260 | 133×110 | 10 |
| ACL-300 | 132 | 300 | 4%, 2% | F, H | 250×180×260 | 133×110 | 10 |
| ACL-400 | 160 | 400 | 4%, 2% | F, H | 280×190×260 | 170×115 | 10 |
| ACL-450 | 187 | 450 | 4%, 2% | F, H | 280×190×260 | 170×115 | 10 |
| ACL-500 | 200 | 500 | 4%, 2% | F, H | 280×190×260 | 170×115 | 10 |
| ACL-600 | 250 | 600 | 4%, 2% | F, H | 280×210×260 | 170×135 | 12 |
| ACL-800 | 315 | 800 | 4%, 2% | F, H | 320×230×290 | 200×120 | 12 |
| ACL-1000 | 400 | 1000 | 4%, 2% | F, H | 320×260×290 | 200×130 | 12 |
| ACL-1100 | 450 | 1100 | 4%, 2% | F, H | 350×260×320 | 200×130 | 12 |
Why Choose ZHIMING's Inverter Incoming Reactor?
Premium Core & Winding Materials
The ACL Series Inverter Incoming Reactor uses high-grade grain-oriented silicon steel laminations and high-purity oxygen-free copper conductors, delivering excellent magnetic performance with minimal core losses. This material selection ensures consistent inductance and low heat generation across the full operating range, extending service life in demanding industrial environments.
Low-Noise, Low-Temperature-Rise Design
Engineered with core clamping techniques, precision winding tensioning, and full impregnation processing, this Inverter Incoming Reactor operates below 35dB(A) — quiet enough for noise-sensitive installations. Temperature rise stays under 60K thanks to an optimized thermal path that maximizes heat dissipation through core geometry, winding arrangement, and natural ventilation.
High Dielectric Strength & Insulation Reliability
Class F/H insulation materials combined with vacuum pressure impregnation (VPI) provide outstanding dielectric endurance. The ACL Series withstands 2500V AC between core and winding with insulation resistance exceeding 100MΩ at 500V DC, ensuring reliable long-term performance against line-side voltage transients and harmonic stress.
Flexible Sizing & Robust Mechanical Construction
With 24 standard models covering motor adapters from 0.75kW to 450kW, the ACL Series fits virtually all common industrial VFD installations. Each unit features a rigid welded or bolted steel frame, corrosion-resistant finishes, accessible copper terminals, and standardized mounting points — providing secure installation in cabinets and control panels with minimal footprint.
FAQ
What is the difference between an Inverter Incoming Reactor and an Output Reactor?
An Inverter Incoming Reactor (ACL Series) is installed on the line side, between the power supply and the VFD input. It suppresses harmonic currents drawn by the drive, limits inrush current during startup, and improves the input power factor. In contrast, an output reactor is installed between the VFD and the motor to protect motor windings from dV/dt stress.
What motor power range does the ACL Series Inverter Incoming Reactor cover?
The ACL Series spans 24 models covering motor adapters from 0.75kW to 450kW, with rated currents from 8A to 1100A. Custom designs beyond this range are available upon request.
What is the voltage drop specification and why does it matter?
The ACL Series has a voltage drop of 2%–4% of rated voltage (380V AC / 50Hz). This controlled impedance provides the filtering effect against harmonics and inrush currents, while keeping the voltage loss at the drive input within acceptable limits for normal operation.
How does this Inverter Incoming Reactor help with power quality?
By adding series impedance on the line side of the VFD, the ACL Series reduces harmonic current distortion drawn from the mains, limits the rate of rise of inrush current during capacitor charging, and improves the true power factor. This protects upstream transformers, cables, and switchgear from overheating and premature aging.
Can I order a custom Inverter Incoming Reactor with non-standard specifications?
Yes. The specification table represents typical models, but ZHIMING can design and produce ACL reactors to meet special requirements including non-standard current ratings, voltage ratings, inductance values, and mounting dimensions. Contact the manufacturer with your specifications for a customized solution.
