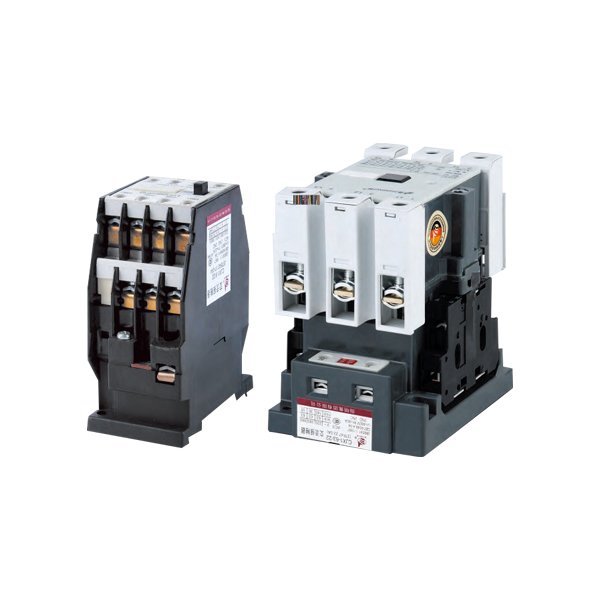

Introduction to the AC Contactor
ZHIMING brand of the CJX1 series AC contactor is suitable for circuits with AC 50Hz or 60Hz frequency and a rated operational voltage up to 1000V. Under the AC-3 utilization category, it is applicable for circuits with a rated voltage of 380V and a rated current up to 475A. It is mainly used for remote making and breaking of circuits, as well as for frequent starting and controlling of AC motors. When combined with an appropriate thermal overload relay, it can be assembled into an electromagnetic starter to provide overload protection for the circuit.
This product complies with the standards GB/T 14048.4 and IEC 60947-4-1.
CJX1-150/22: “/22” means 2 NO + 2 NC auxiliary contacts
CJX1 – Product series (AC contactor)
150 – Rated current (Ie) in amperes under AC-3 duty
/22 – Auxiliary contact configuration
- First digit: Number of normally open (NO) auxiliary contacts
- Second digit: Number of normally closed (NC) auxiliary contacts
Product Features of the AC Contactor
- Reliable Performance: High mechanical and electrical endurance, ensuring long service life under frequent operation conditions.
- Compact Structure: Space-saving design with optimized arc extinguishing system for enhanced safety.
- Wide Application Range: Suitable for controlling motors, transformers, capacitor banks, and other electrical loads.
- Auxiliary Contact Options: Available with a variety of auxiliary contacts (NO/NC) to meet different control requirements.
- Thermal Overload Protection: Can be combined with compatible thermal overload relays to form a complete motor starter unit.
- Low Power Consumption: Coil is designed for low energy consumption and high efficiency.
Installation Method of the AC Contactor
- Mounting Type: Available for both rail mounting (DIN rail) and screw mounting.
- Position: Vertical installation is recommended for optimal performance; ensure proper ventilation around the unit.
- Wiring: Clear terminal marking and strong anti-vibration terminal screws ensure secure and reliable connections.
- Protection Degree: Optional protective covers are available to enhance the IP rating and safety during maintenance.
Compliance Standards: GB/T 14048.1, GB/T 14048.4, IEC 60947-4-1
Conformity: CE certified, ensuring compliance with international safety and performance requirements.
Technical Parameter of the AC Contactor
| Type | CJX1-9 | CJX1-12 | CJX1-16 | CJX1-22 | CJX1-32 | CJX1-38 | CJX1-45 | CJX1-63 | CJX1-75 | CJX1-85 | CJX1-110 | CJX1-140 | CJX1-170 | CJX1-205 | CJX1-250 | CJX1-300 | CJX1-400 | CJX1-475 | |
| Rated insulation Voltage | 690 | 1000 | |||||||||||||||||
| Frequency(Hz) | 50(/60) | ||||||||||||||||||
| Rated Working current | AC-3380V | 9 | 12 | 16 | 22 | 32 | 38 | 45 | 63 | 75 | 85 | 110 | 140 | 170 | 205 | 250 | 300 | 400 | 475 |
| AC-4380V | 3.3 | 4.3 | 7.7 | 8.5 | 15.6 | 18.5 | 24 | 28 | 34 | 42 | 54 | 68 | 75 | 96 | 110 | 125 | 150 | 165 | |
| Max power of controllable motor under AC-3 utilization kW | 220V | 2.2 | 3 | 4 | 5.5 | 8.5 | 11 | 15 | 18.5 | 22 | 28 | 37 | 43 | 55 | 64 | 78 | 93 | 125 | 148 |
| 380V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 252 | |
| 660V | 5.5 | 7.2 | 11 | 11 | 23 | 23 | 39 | 55 | 67 | 67 | 100 | 100 | 156 | 156 | 235 | 235 | 375 | 342 | |
| Conventional thermal current | 20 | 20 | 30 | 30 | 55 | 55 | 90 | 80 | 100 | 100 | 160 | 160 | 210 | 220 | 300 | 300 | 400 | 550 | |
| Operating frequency | AC-3 | 1200 | 1200 | 1200 | 1200 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| AC-4 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 200 | 200 | 130 | 200 | 130 | 150 | 150 | |
| On-load factor AC-3 | 40% | ||||||||||||||||||
| Combined with fuse | NT00- 16 | NT00- 20 | NTO0- 25 | NT00- 32 | NT00- 50 | NT00- 63 | NT00- 63 | NT00- 80 | NT00- 100 | NT00- 125 | NT00- 160 | NT00- 200 | NT00- 250 | NTO0- 250 | NT00- 315 | NTO00- 400 | NTO0- 500 | NT00- 500 | |
| Combined with the thermal overboard relay | JRS2-12.5 | JRS2-25 | JRS2-32 | JRS2-45 | JRS2-80 | JRS2-80 | JRS2-180 | JRS2-180 | JRS2-250 | JRS2-400 | |||||||||
| Working range of pull-in windings | Atracting | 85%Us~110%Us | |||||||||||||||||
| Release | 20%Us~75%Us | ||||||||||||||||||
| Voltage of pul-in windings | 24,36,48,110,127,220,380 | ||||||||||||||||||
| Conventional thermal current of auxiliary contact | 10 | ||||||||||||||||||
| Electrica life | AC-3 | 100 | 80 | 60 | |||||||||||||||
| AC-4 | 20 | 15 | 10 | ||||||||||||||||
| Weight (kg) | 0.43 | 0.49 | 0.7 | 1.43 | 2.21 | 3.42 | 5.5 | 6.8 | 9.2 | ||||||||||
Product Size of the AC Contactor
| Type | Amax | Bmax | Cmax | a | b | Ø |
| CJX1-9.12 | 46 | 79 | 106 | 35±0.50 | 60±0.60 | 4.8+0.48 |
| CJX1-16.22 | 46 | 89 | 116 | 35±0.50 | 75±0.60 | |
| CJX1-32 | 74 | 90 | 109 | 50±0.50 | 75±0.60 | 5+0.48 |
| CJX1-38 | 82 | 102 | 110 | 45±0.50 | 75±0.60 | |
| CJX1-45.63 | 92 | 120 | 125 | 70±0.60 | 100±0.70 | |
| CJX1-75.85 | 105 | 135 | 145 | 80±0.60 | 110±0.70 | 5.5+0.48 |
| CJX1-110.140 | 125 | 158 | 155 | 100±0.70 | 130±0.80 | 6.5+0.58 |
| CJX1-170 | 140 | 185 | 190 | 110±0.70 | 160±0.80 | 7.0+0.58 |
| CJX1-205 | 140 | 185 | 190 | 110±0.70 | 160±0.80 | 7.0 +0.58 |
| CJX1-250 | 146 | 194 | 202 | 120±0.70 | 180±0.80 | 9.0 +0.63 |
| CJX1-300 | 146 | 194 | 202 | 120±0.70 | 180±0.80 | 9.0 +0.63 |
| CJX1-400 | 162 | 205 | 224 | 130±0.80 | 180±0.80 | 9.0+0.63 |
| CJX1-475 | 162 | 205 | 224 | 130±0.80 | 180±0.80 | 9.0+0.63 |
