What Is LMZJ1-0.66 Series Low Voltage Current Transformer？

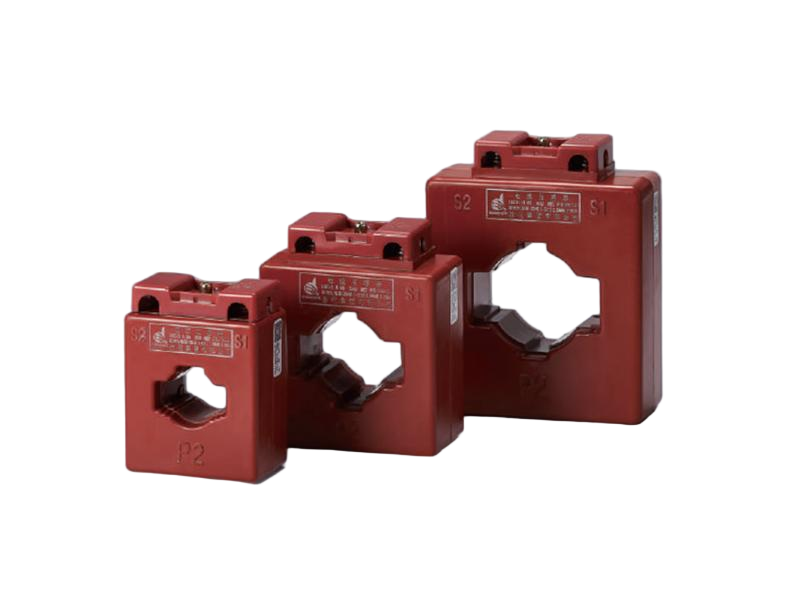

LMZJ1-0.66 BH-type current transformer is mainly used for indoor, for rated voltage up to and including 0.66 kV, rated frequency 50Hz, accircuit as the electric current and electric energy, and relay protection. The product is an epoxy resin current transformer, which is widely used in complete sets of cabinets. Put oneself in another’s position, its installation method can be used for bus fixed and base plate fixed installation method, suitable for any direction installation, a conductor for bus or cable. Standard:lEC61869
Working Conditions of the LMZJ1-0.66 Series Low Voltage Current Transformer
- Installation sites: indoor
- Ambient temperature:-5~40`c
- Ambient humidity: ≤ 80%
- Altitude: s1000m
- Atmospheric conditions: no serious impurity in the atmosphere.
Product Parameters
| Product chart | Current ratio (A) | Secondary load(VA) | Cross-core turn number | |||
| Class 1 | Class 0.5 | Class 0.5S | Class 0.2 | |||
| LMZJ1-0.66_30 | 100/5 | 2.5 | 1 | |||
| 150/5 | 2.5 | 1 | ||||
| 200/5 | 2.5 | 1 | ||||
| 300/5 | 5 | 1 | ||||
| 400/5 | 5 | 1 | ||||
| LMZJ1-0.66_40 | 200/5 | 2.5 | 1 | |||
| 250/5 | 2.5 | 1 | ||||
| 300/5 | 5 | 1 | ||||
| 400/5 | 5 | 1 | ||||
| 500/5 | 5 | 1 | ||||
| 600/5 | 5 | 1 | ||||
| 750/5 | 10 | 1 | ||||
| 800/5 | 10 | 1 | ||||
| LMZJ1-0.66 50 | 300/5 | 2.5 | 1 | |||
| 400/5 | 5 | 1 | ||||
| 500/5 | 5 | 1 | ||||
| 600/5 | 5 | 1 | ||||
| 750/5 | 10 | 1 | ||||
| 800/5 | 10 | 1 | ||||
| 1000/5 | 10 | 1 | ||||
| LMZJ1-0.66 60 | 400/5 | 5 | 1 | |||
| 500/5 | 5 | 1 | ||||
| 600/5 | 5 | 1 | ||||
| 750/5 | 10 | 1 | ||||
| 800/5 | 10 | 1 | ||||
| 1000/5 | 10 | 1 | ||||
| LMZJ1-0.66 80 | 500/5 | 5 | 1 | |||
| 600/5 | 5 | 1 | ||||
| 750/5 | 10 | 1 | ||||
| 800/5 | 10 | 1 | ||||
| 1000/5 | 10 | 1 | ||||
| 1200/5 | 10 | 1 | ||||
| 1500/5 | 10 | 1 | ||||
| 1500/5 | 10 | 1 | ||||
Why Choose ZHIMING's LMZJ1-0.66 Series Low Voltage Current Transformer?
Epoxy Resin Casting for Superior Insulation
The epoxy resin encapsulation provides excellent dielectric strength, moisture resistance, and mechanical protection, ensuring long-term reliability in low voltage systems.
Flexible Installation Options
Supports both busbar fixing and base plate fixing methods, and can be installed in any direction, adapting easily to various cabinet layouts and space constraints.
Dual Primary Conductor Compatibility
Accepts either busbars or cables as the primary conductor, offering versatility for different system designs without requiring additional adapters.
Accurate Measurement & Relay Protection
Designed for 0.66kV, 50Hz circuits, this transformer delivers precise current and energy readings while providing reliable signals for protection relays, enhancing system safety.
Complies with IEC 61869
Manufactured according to international standard IEC 61869, ensuring performance, safety, and global acceptance for low voltage current transformer applications.
