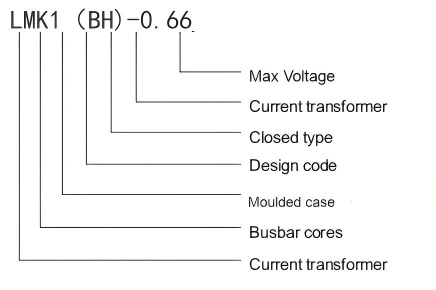

Code and implication
Application
The ZHIMING LMK1(BH)-0.66 type current transformer is primarily intended for indoor use in AC circuits with a rated voltage of up to 0.66 kV and a rated frequency of 50 Hz. It is used for current and energy measurement, as well as relay protection.

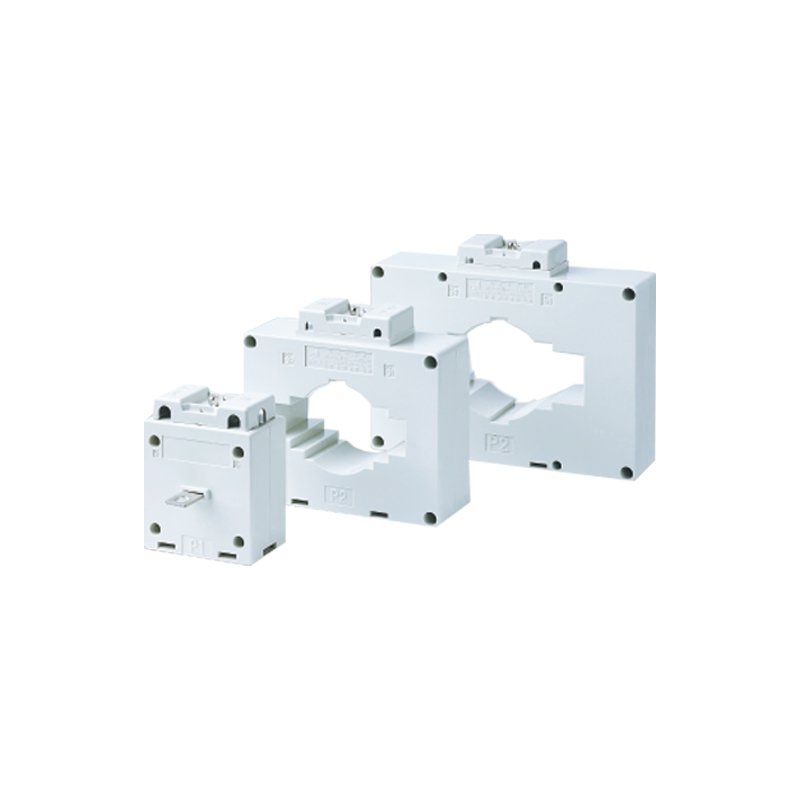

This model is a plastic-encased current transformer, widely used in low-voltage switchgear assemblies. It supports both busbar and base plate mounting and is suitable for installation in any direction. The primary conductor can be either a busbar or a cable.
- High accuracy
- Large capacity
- Compact size
- Cost-effectiveness
- Compliance Standard: IEC 61869
Working Environment
Atmospheric Conditions: No serious impurities in the atmosphere.
Installation Site: Indoor
Ambient Temperature: -5~40℃
Ambient Humidity: ≤ 80%
Altitude: ≤ 1000 m
Technical Parameter
| Current ratio (A) | VA Secondary load(VA) | ||||
| 1级 | 0.5级 | 0.5S级 | 0.2级 | 0.2S级 | |
| 150/5 | 5 | 2.5 | 2.5 | 5 | 1 |
| 200/5 | 5 | 2.5 | 5 | 5 | 1 |
| 250/5 | 5 | 2.5 | 5 | 5 | 1 |
| 300/5 | 5 | 5 | 5 | 5 | 1 |
| 400/5 | 5 | 5 | 5 | 5 | 1 |
| 500/5 | 5 | 5 | 5 | 5 | 1 |
| 600/5 | 5 | 5 | 5 | 5 | 1 |
| 750/5 | 10 | 10 | 10 | 5 | 1 |
| 800/5 | 10 | 10 | 10 | 5 | 1 |
| 1000/5 | 10 | 10 | 10 | 5 | 1 |

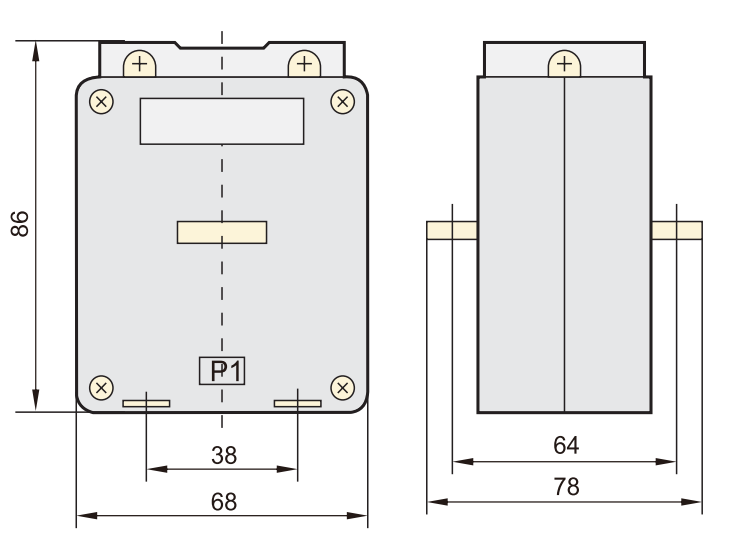

Product Size
