Application

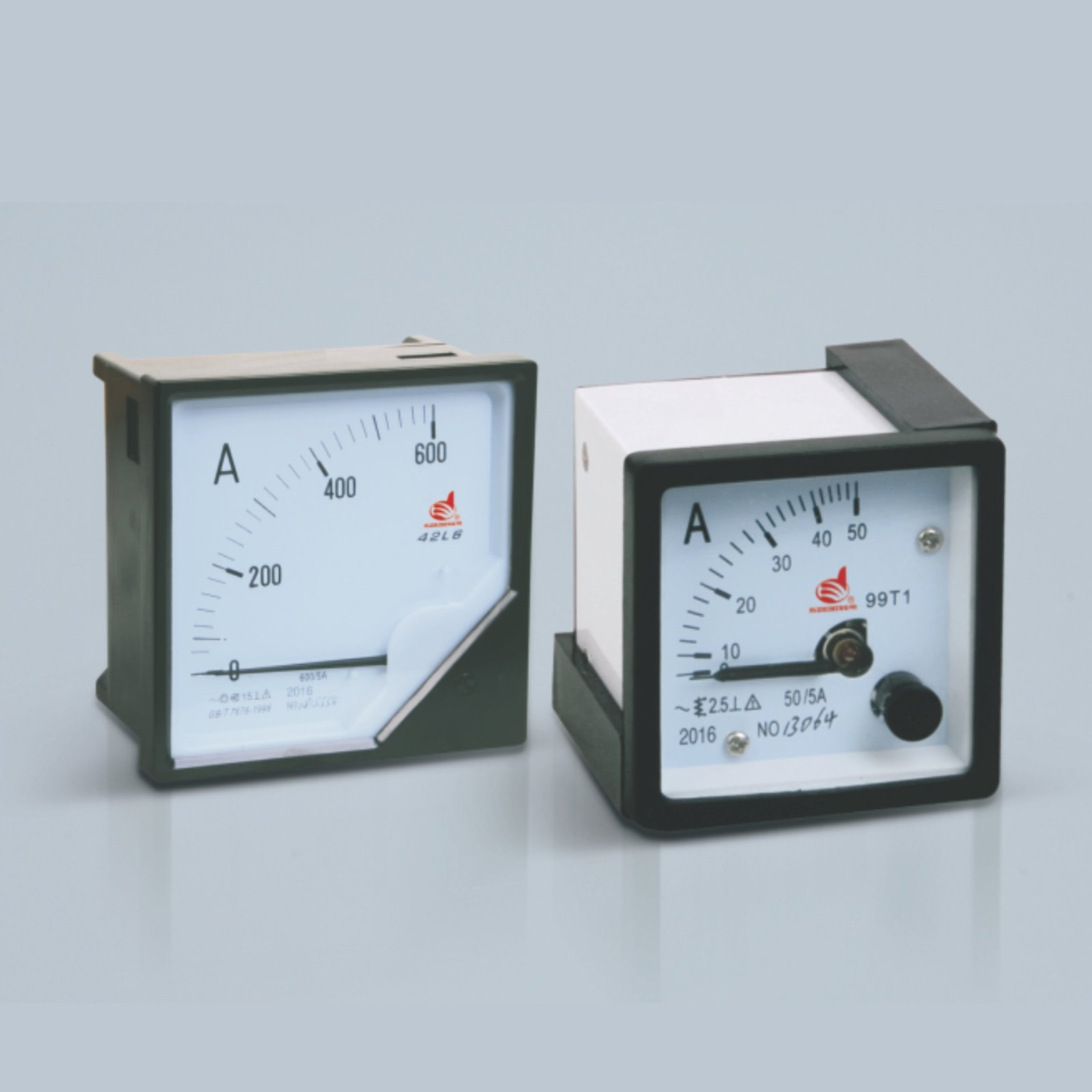

A mounting-type electric meter is a direct-acting, indicating, analogue electrical-measuring instrument with a wide application range. It is applicable for the measurement of DC circuits and power frequency AC circuits: electric parameters such as voltage, current, frequency, power factor, synchronous indication, etc. Intrinsic advantages of mounting panel meter: display the change trend of measured electric quantity, in addition to single use, it is mainly matched with instrument board for various HV and LV switch gears, power cabinets, control cabinets, as well as various electrical control devices, its indexes are in accordance with the technical requirements of national standard GB/T7676-1998.
It is featured with plastic or bakelite housing, a large window, a wide visual angle, laconic and lucid construction, elegant appearance, etc.
Main Technical Data
1. Accuracy: class 1.5, class 2.5.
2. Operating condition: -20℃+50℃.
3. Relative humidity: ≤85%.
4. Effect of withstand voltage: self-frequency constant value changes ±15%, the error of the indicated value should not be beyond the fundamental error.
5. Mechanical property: it can withstand transportation for 2h with shock under conditions of acceleration 30m/s2 and 80-12 times of strokes per minute.
Working Position: Operate in Vertical.
Product Size
