Application

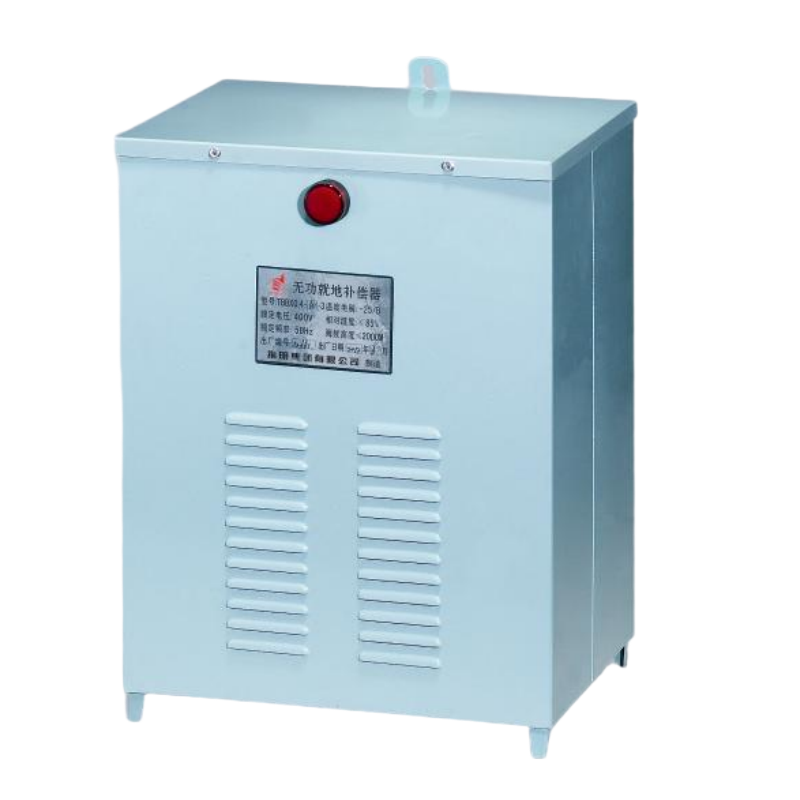

ZHIMING brand of TBBX type reactive field compensator is a kind of energy-saving product developed through the self healing type of shunt capacitor by the company, The device is mounted beside the in ductive load and shunted with it infield to operate synchronously so as to do reactive compensation directly, As a result, the power factor of the electric network is promoted, the line lossreduced, the supply voltage of the end load improved, and the supply potential of thedistribution system developed fundamentally. The device is widely applied to the low voltage distribution system of industrial and miningenterprises,emporiums and buildings, and electric network of countries to do field reactive compensation for inductive load.
Normal working conditions and installation conditions
Service conditions: Altitude <2000m; Ambient temperature -25°C~+50°Chumidity<90% at 35°C.
Rated voltage: 400V 50Hz
Rated output: 1~100Kvar
Capacitance Tolerance: 0~+15%
Tangent of the loss angle: <0.2%
Max allowable over voltage: 110% rated voltage Max allowable over current:130% rated currentInsulating property: More than 1000MΩ between the pole and the enclosureSelf-discharging characteristics: After switching off for 3 minutes, the residualvoltage decreases to less than 50.
Main Characteristics
Flexible, direct and high efficient compensation layout
Making high profit by small amount of investment.
In general, theelectricity fees saved by using the device in half a year are equal to the investment amount, so the economic benefit is obvious.
Small volume and light weight.
Convenient installation and safe and reliable operation.

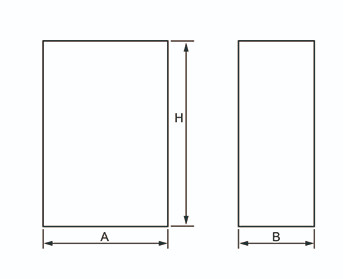

Overall Dimension
| Spec | A | B | H |
| 1-10Kvar | 220 | 100 | 300 |
| 11-16Kvar | 220 | 100 | 400 |
| 17-22Kvar | 230 | 140 | 400 |
| 23-40Kvar | 300 | 230 | 400 |
| 45-60Kvar | 300 | 250 | 550 |
| 65-100Kvar | 500 | 250 | 550 |
