Application

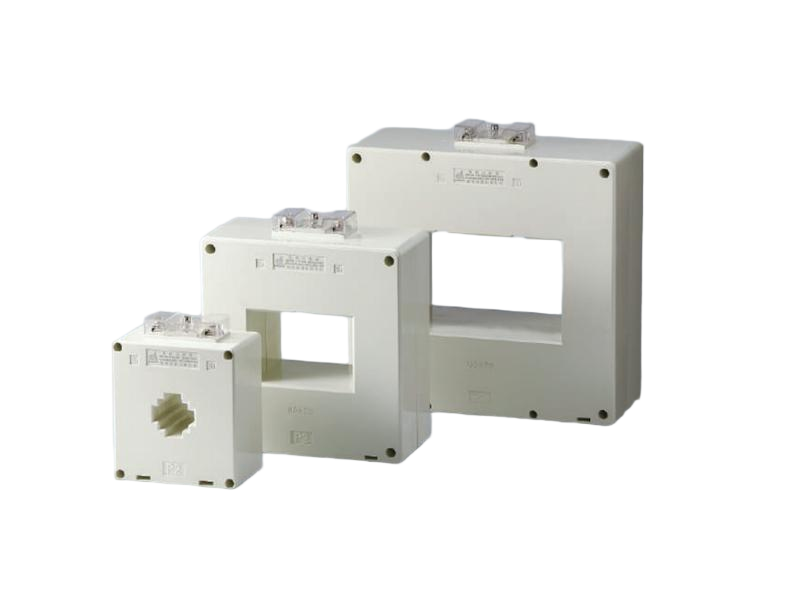

LMK8(BH)-0.66 current transformer main use Inductance, rated voltage 0.66kV or less, rated voltage 50Hz in an AC circuit for current, electric energy measurement, or surveying.Product typeplastic jar type electric current sympathizer, application in-use inductance body, its mounting method, mother exhaust fixing, Japanese bottomplate fixing mounting method, suitable horizontal or vertical mounting, given type l, ll phase ratiotool large capacity, high accuracy, attachedAdvantages such as small and cheap flights.Standard: IEC 61869
Working Environment
- Installation sites: Indoor
- Ambient temperature:-5~40’c
- Ambient humidity: ≤ 80%
- Altitude: s1000m
- Atmospheric conditions: no serious impurity in the atmosphere.
Technical Parameters and Installation Size
When the customer orders, they must provide the following information:
- The product model and window width;
- Rated current ratio;
- Rated output, and the corresponding accurate level;
- For example: order LMK8 (BH) – 0.66 type, window width is 80 mm, rated current than 2000/5 a and rated output is 10 VA, accurate magnitude 10P10 on the Richter scale transformer. Order, code-named LMK8 (BH) 0.66 Φ 80 2000/5 1 turn 10 VA a 10P10 on the Richter scale are unlikely.
- If you have special requirements, a customized consultation with the manufacturer.
