Application

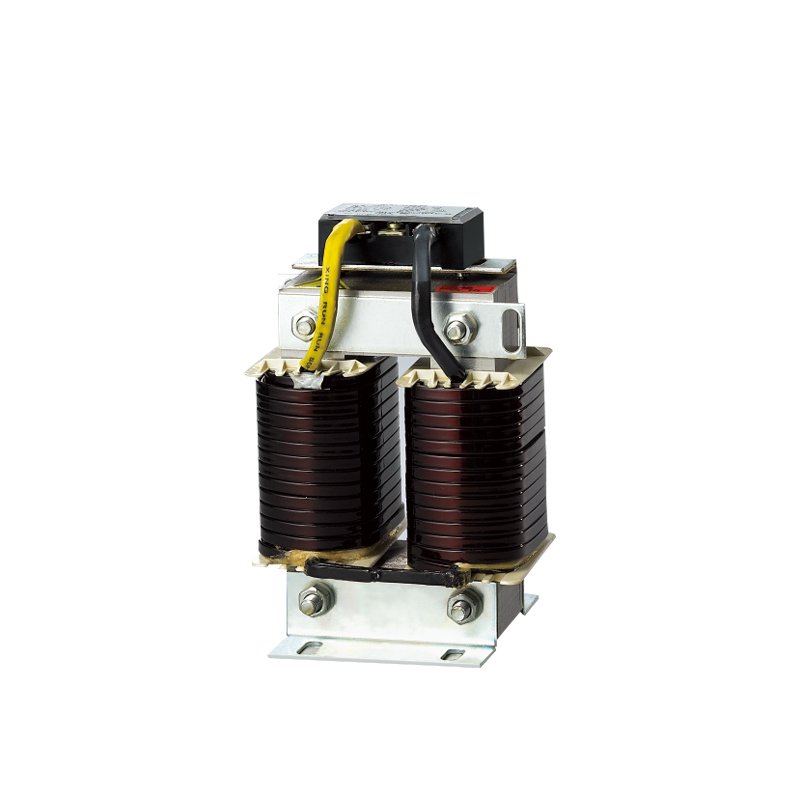

ZHIMING brand of low-voltage Input & Cutout Reactor was used for compensating reactive.
Applicable standard: IEC 289: 1987
● Improve the input current wave resulting from capacitor harmonics.
● Reduce and prevent the rectification bridge from being damaged and the capacitor.
● Being overheated due to surging current.
● Improve power factor, reduce DC busbar AC pulse.
● Restrict the transient change of system voltage.
Structure features
Rated operating voltage: 400V-1200V/50Hz
Rated operating current: 3A to 1500A @ 40 ℃
Electric strength: iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown;
Insulation resistance: iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of reactor: less than 35dB (measured from 1 meter away in horizon from the reactor)
Degree of protection: IP00
Degree of Insulation: > Class F
Product Size
| Specification | Power Adapter | Rated current | Pressure Drop | Insulation grade | Dimensions | Mounting Dimensions | Aperture |
| DCL-8 | 0.75 | 8 | 10.6 | F.H | 100x120x85 | 84×70 | 5 |
| DCL-10 | 4 | 10 | 6.37 | F.H | 100x120x85 | 84×70 | 5 |
| DCL-15 | 5.5 | 15 | 4.25 | F.H | 100x120x85 | 84×70 | 5 |
| DCL-20 | 7.5 | 20 | 3.18 | F.H | 100×120×85 | 84×70 | 5 |
| DCL-30 | 11 | 30 | 2.12 | F.H | 140x110x170 | 70×65 | 6 |
| DCL-40 | 15 | 40 | 1.6 | F.H | 140x110x170 | 70×65 | 6 |
| DCL-50 | 18 | 50 | 1.27 | F.H | 140x110x170 | 70×65 | 6 |
| DCL-60 | 22 | 60 | 1.06 | F.H | 140x110x170 | 70×65 | 6 |
| DCL-80 | 30 | 80 | 0.79 | F.H | 140x110x170 | 70×65 | 6 |
| DCL-110 | 37 | 110 | 0.56 | F.H | 140x150x170 | 70×85 | 8 |
| DCL-120 | 45 | 120 | 0.53 | F.H | 140x150x170 | 70×85 | 8 |
| DCL-150 | 55 | 150 | 0.42 | F.H | 140x150x170 | 70×85 | 8 |
| DCL-200 | 75 | 200 | 0.32 | F.H | 140x160x215 | 70×95 | 8 |
| DCL-250 | 93 | 250 | 0.25 | F.H | 140x160x215 | 70×95 | 8 |
| DCL-280 | 110 | 280 | 0.22 | F.H | 140x160x215 | 70×95 | 8 |
| DCL-300 | 132 | 300 | 0.21 | F.H | 160x160x215 | 84×110 | 10 |
| DCL-400 | 160 | 400 | 0.16 | F.H | 160x170x260 | 84×110 | 10 |
| DCL-450 | 187 | 450 | 0.14 | F.H | 160x170x260 | 125×120 | 10 |
| DCL-500 | 200 | 500 | 0.127 | F.H | 160x170x260 | 125×120 | 10 |
| DCL-600 | 250 | 600 | 0.11 | F.H | 210x210x290 | 125×120 | 10 |
| DCL-800 | 315 | 800 | 0.08 | F.H | 210x210x290 | 125×120 | 10 |
| DCL-1000 | 400 | 1000 | 0.063 | F.H | 210x230x290 | 125×130 | 12 |
| DCL-1100 | 450 | 1100 | F.H | 230x250x320 | 125×130 | 12 |
Note: The above-mentioned data is the reference for typical models; we can design and produce according to the special requirements of the user. We reserve the right to change the technical data.
