Code and Implication
Wiring Diagram
Technical Parameters
| Type | Rated voltage ratio | Accuracy class and rated output | Power frequency withstand voltage | |
| 0.2 | 0.5 | |||
| JDZ-1 | 380/100 | 5 | 5 | 3 |
| 660/100 | 5 | 5 | 3 | |
| 690/100 | 5 | 5 | 3 | |
| 1140/100 | 5 | 5 | 3 | |
Product Size

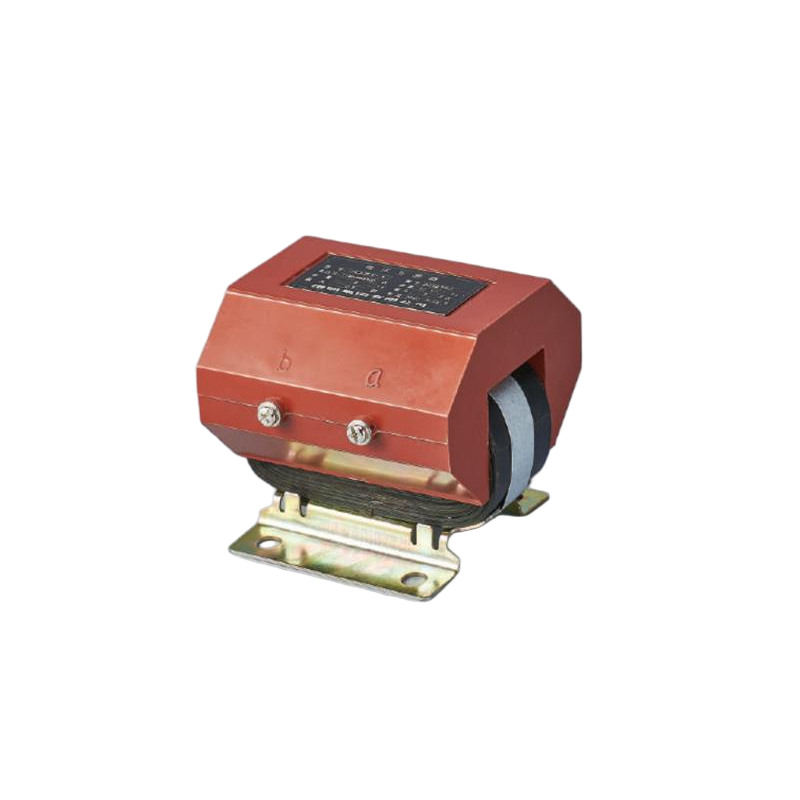

Single-phase Dry Voltage Transformers
JDZ-1 Series
Minimum Order:100 pieces
Stock Time: 7-15Days
