Maximizar a eficiência e o fator de potência
| Core Function | Universal Data Range | Application Advantage |
|---|---|---|
| Power Factor Correction | Optimize power factor from 0.68 to 0.97+ | Avoid reactive power fine and reduce enterprise electricity cost |
| Grid Line Loss Reduction | Cut down line active loss by 9%-16% | Minimize heat loss of power transmission lines |
| Voltage Fluctuation Suppression | Control voltage deviation within ±4% | Stabilize terminal voltage for inductive electrical equipment |
| Low-order Harmonic Purification | Suppress 3rd/5th harmonic below 4.5% | Reduce harmonic damage to cables and electrical components |
| Cabinet Space Utilization | Improve cabinet space utilization by 25% | Suitable for dense assembly of multiple capacitors |
This table helps engineers and procurement teams quickly match the right square power capacitor to their system requirements.
| Technical Item | Universal Specification Data |
|---|---|
| Rated Working Voltage | 400V, 450V, 500V, 525V |
| Rated Frequency | 50Hz / 60Hz (Dual Frequency) |
| Single Unit Capacity | 10kvar - 60kvar (Customizable) |
| Capacitance Tolerance | -3% ~ +3% |
| Loss Tangent (tanδ) | ≤0.0009 (25℃ Constant Temperature) |
| Internal Configuration | Built-in discharge resistor & pressure relief valve |
| Shell Material | Galvanized Steel / Aluminum Alloy Square Shell |
| Working Altitude | ≤1200m |
| Temperatura de funcionamento | -25℃ ~ +55℃ |
| Design Service Life | 12 Years Standard Service Lifespan |
Where Our Square Power Capacitor Delivers Proven Results

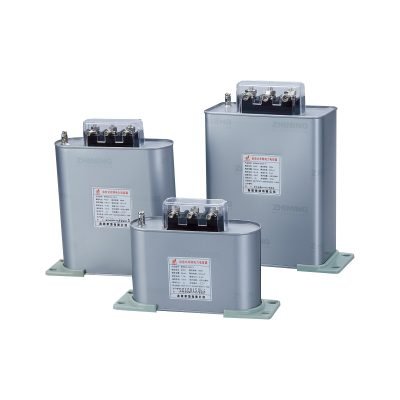

ZHIMING Square Power Capacitor adopts regular square shell with unified industrial size. It fits perfectly with international standard distribution cabinets, supports dense arrangement and combined installation, and makes internal cabinet wiring neater and more orderly.
This square capacitor uses high-toughness metallized polypropylene film. With excellent self-healing performance, it can repair tiny breakdown points caused by instantaneous voltage surge, avoiding permanent failure and extending service life.
Equipped with mechanical pressure relief valve, overcurrent protection and built-in rapid discharge resistor. When abnormal pressure or overvoltage occurs inside the device, it will automatically cut off the circuit to prevent bulging and leakage risks.
Adopt integral sealing process with environmentally friendly resin filling. The square shell has strong compression resistance, effectively isolating external dust, moisture and corrosive gas, adapting to complex indoor industrial environments.
Optimized internal winding structure reduces dielectric loss. The capacitor maintains stable reactive power output for a long time without performance attenuation, effectively reducing no-load loss of the power grid.
The rugged square shell structure is resistant to collision and deformation during transportation and installation. It adopts maintenance-free design, requiring no daily manual maintenance to save later operating investment.
