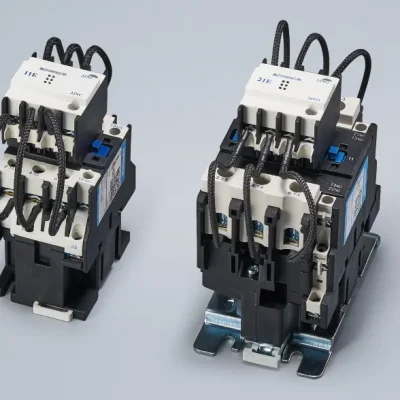

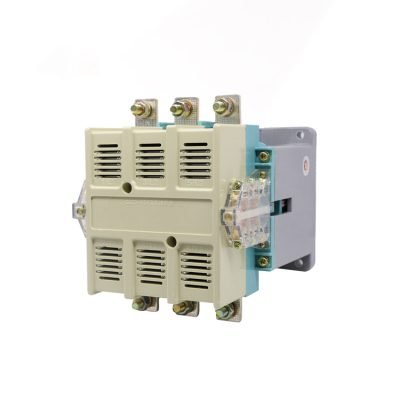

A capacitor contactor is a specialized switching device designed for the safe and reliable connection and disconnection of power factor correction capacitors to an electrical network. Unlike standard contactors, a capacitor contactor incorporates pre-insertion resistors or early-make auxiliary contacts that limit the inrush current and suppress dangerous voltage spikes when capacitors are energized. This prevents contact welding, reduces harmonic stress, and extends the service life of both the contactor and the capacitor banks. Capacitor contactors are essential components in automatic power factor correction panels, industrial plants, and commercial buildings with fluctuating reactive power loads.
| Função | Descrição |
|---|---|
| Inrush current limitation | Reduces peak current during capacitor switching, typically from several thousand amperes to ≤100× rated current |
| Voltage spike suppression | Prevents overvoltage transients that could damage capacitors and adjacent equipment |
| Contact protection | Uses early‑make auxiliary contacts with damping resistors to avoid arcing and welding on main contacts |
| Automated power factor regulation | Enables step‑wise switching of capacitor stages in response to reactive power demand |
| Thermal overload coordination | Compatible with upstream fuses or circuit breakers for safe fault disconnection |
| Vida mecânica | Up to 1‑2 million switching operations (depending on load and frequency) |
| Electrical durability | Typically 100,000–300,000 operations at rated capacitor current |
This table helps engineers and procurement teams quickly match the Capacitor Contactor to their system requirements.
| Parâmetro | Valor típico / Intervalo |
|---|---|
| Rated operational voltage (Ue) | 220–690 V AC (50/60 Hz) |
| Rated insulation voltage (Ui) | 660–1000 V |
| Rated thermal current (Ith) | 25 A – 125 A (common sizes) |
| Capacitor switching power | 5 kvar – 100 kvar (per contactor) |
| Inrush current peak limiting | ≤ 50× – 100× rated rms current |
| Pre-insertion resistor value | 1.5 Ω – 4.7 Ω (typical) |
| Pre-insertion time | 5 – 15 ms |
| Control coil voltage | AC 24 V, 110 V, 230 V, 400 V or DC options |
| Coil power consumption (sealed) | 5 – 15 VA |
| Ambient temperature range | -25 °C to +55 °C |
| Mechanical endurance | 1 – 2 million operations |
| Electrical endurance (AC-6b duty) | 100,000 – 300,000 operations |
| Terminal protection rating | IP20 (with cover) |
Where Our Capacitor Contactor Delivers Proven Results with Power Factor Correction Capacitors
A capacitor contactor is not a one-size-fits-all component. Below are typical scenarios where our capacitor contactor, when paired with a power factor correction capacitor, reduces reactive energy penalties, improves voltage stability, and lowers harmonic distortion — by ensuring clean, surge‑free capacitor bank switching.
Our capacitor contactor is designed to safely handle inrush currents up to 200× the rated capacitor current, effectively preventing contact welding and ensuring long-term reliability even under frequent switching conditions.
Each ZHIMING capacitor contactor comes with built-in damping resistors that limit transient surges and voltage spikes. This protects both the contactor and your capacitor banks, significantly extending system lifespan.
With a space-saving 35 mm DIN-rail footprint, our capacitor contactor fits easily into crowded power factor correction panels, leaving more room for other components and simplifying panel layout.
Compatible with AC control voltages from 220 V to 690 V (50/60 Hz), ZHIMING capacitor contactors suit diverse global applications, from industrial plants to commercial buildings without needing additional adapters.
Our capacitor contactor consumes only 5–15 VA during sealing, reducing panel internal heat and cutting standby energy costs — a key advantage for 24/7 operated systems.
Every ZHIMING capacitor contactor complies with IEC 60947‑4‑1 and carries CE marking, ensuring safe, reliable performance in automatic power factor correction systems worldwide.
Um fabricante líder de condensadores de potência com mais de 25 anos de experiência está aqui para responder a todas as suas perguntas - abrangendo quaisquer questões relacionadas com o produto, questões comerciais ou preocupações relacionadas com o serviço.
Ainda tem dúvidas? Estamos aqui para ajudar
Não encontrou o que estava à procura?
Contacte-nos em qualquer altura
No. A standard contactor lacks pre‑insertion resistors, causing inrush currents up to 200× the capacitor’s current. This leads to contact welding, excessive harmonics, and premature failure of both the contactor and the capacitor.
Match the contactor’s switching power (kvar) to your capacitor step size, and ensure the operational voltage and coil control voltage match your system. Always add a safety margin of 20‑30% for severe harmonic environments.
Under normal operating conditions (AC‑6b duty, ≤50 switching operations per day), a quality capacitor contactor can achieve 100,000 to 300,000 electrical operations, which often translates to 5‑10 years of service.
They produce minimal heat – typically 1‑3 W per pole when sealed. Compared to standard contactors with passive damping circuits, modern capacitor contactors are highly energy‑efficient.
Yes, as long as the contactor is rated for the single‑phase voltage and current. However, most three‑phase capacitor contactors can also switch three single‑phase capacitors simultaneously – consult the manufacturer’s wiring diagram.
